Automatic winding and management mould Φ50*60 - A
Application field:
It is suitable for power coils of cooling fans, DC motors, small motors, automobile motors, etc., special for four-pole and multi-pole winding.
- Product Details
Product parameter
![工作图片](/tpl/en/images/mub02Title_xian01.png)
Name | Die specifications | Wire diameter range | Silicon steel sheet outer diameter range | Silicon steel sheet thickness range |
Automatic winding and management mould | Φ50*60 | 0.10 to 0.65 | φ12.5 to φ24.0 | 0.7mm to 12.0 |

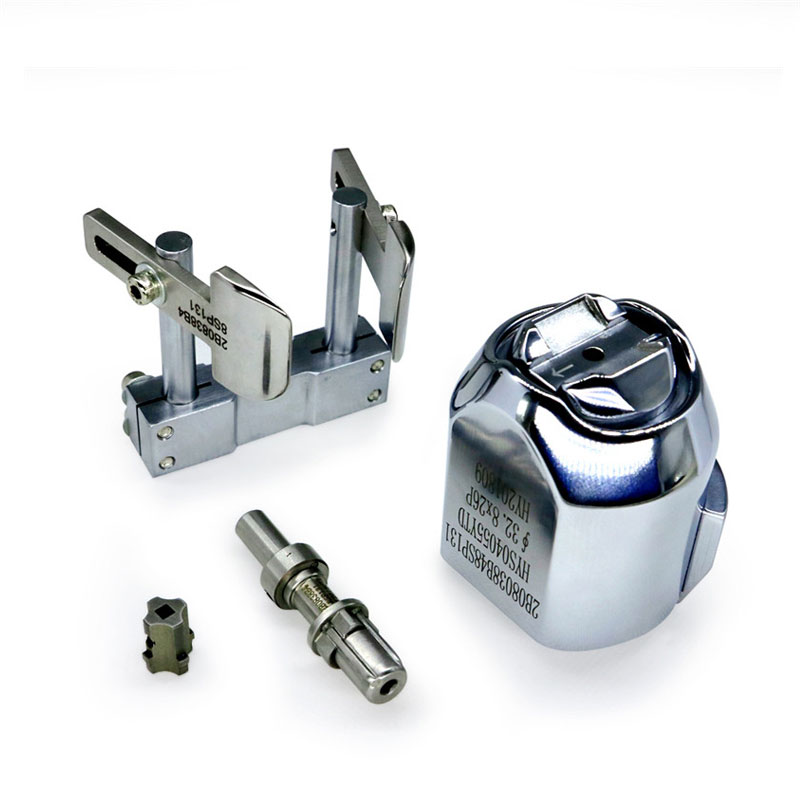

Mold picture
![模具图片](/tpl/en/images/mub02Title_xian01.png)
![b5ab4c75603e2b18](res/_cache/prodas/66/663.jpg)

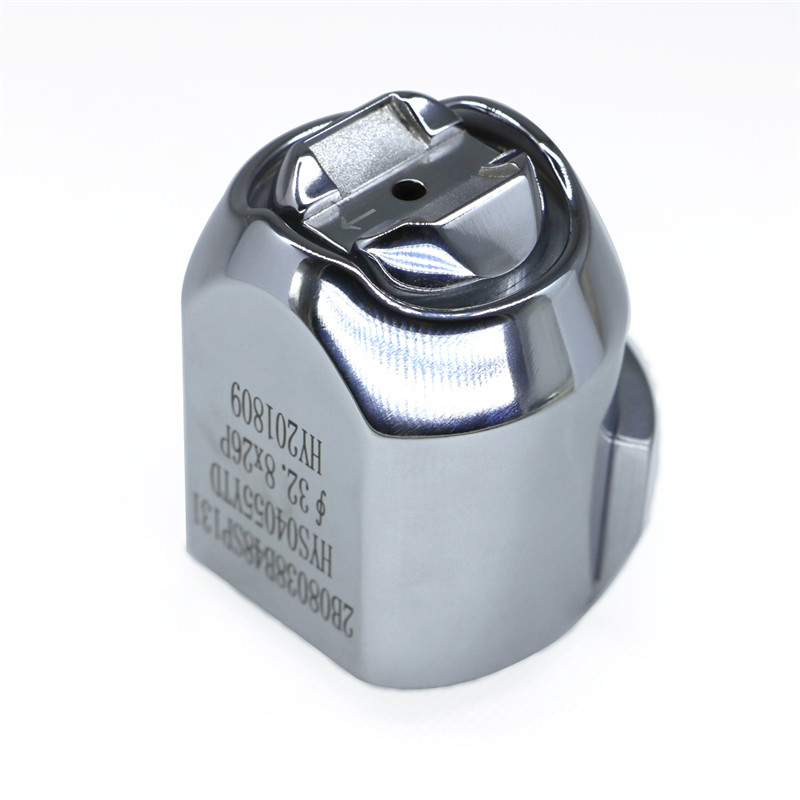

![模头处理图](res/_cache/prodas/30/304.jpg)

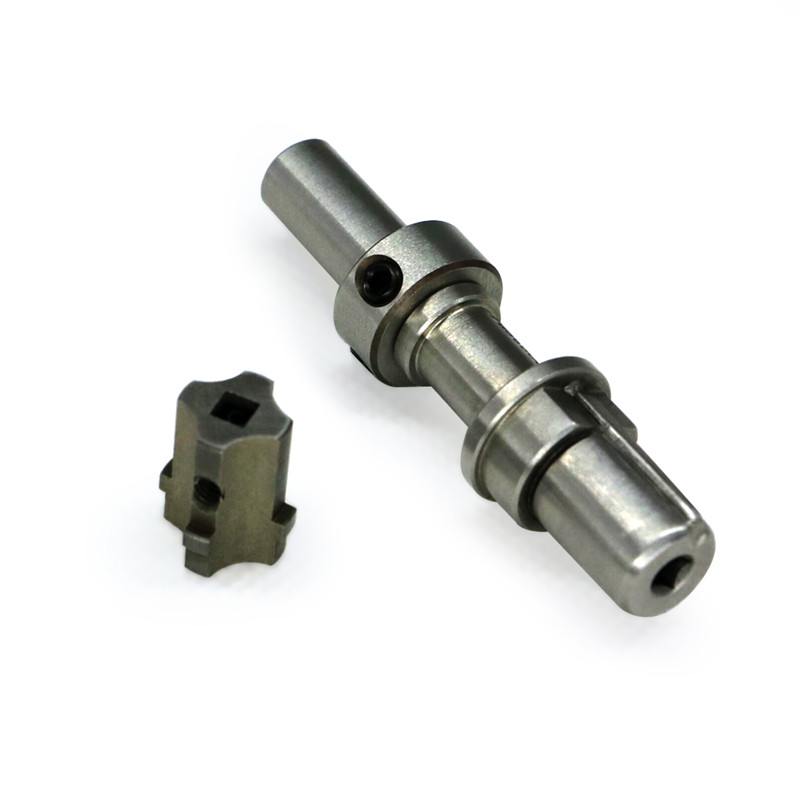

![模杆处理图](res/_cache/prodas/30/302.jpg)
