Automatic winding and management mouldΦ50*60 - B

Application field:

It is suitable for power coils of cooling fans, DC motors, small motors, automobile motors, etc., special for four-pole and multi-pole winding.
  • Product Details

    Product parameter

    工作图片
    NameDie specificationsWire diameter rangeSilicon steel sheet outer diameter rangeSilicon steel sheet thickness range

    Automatic winding and

    management mould

    Φ50*600.10 to 0.65φ12.5 to φ24.00.7mm to 12.0

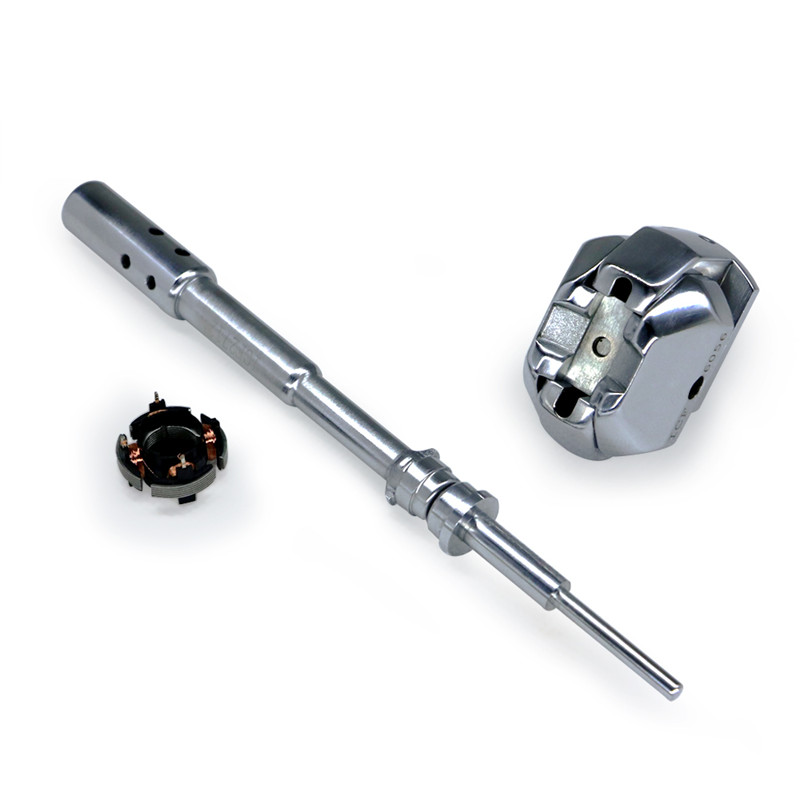

    Mold picture

    模具图片

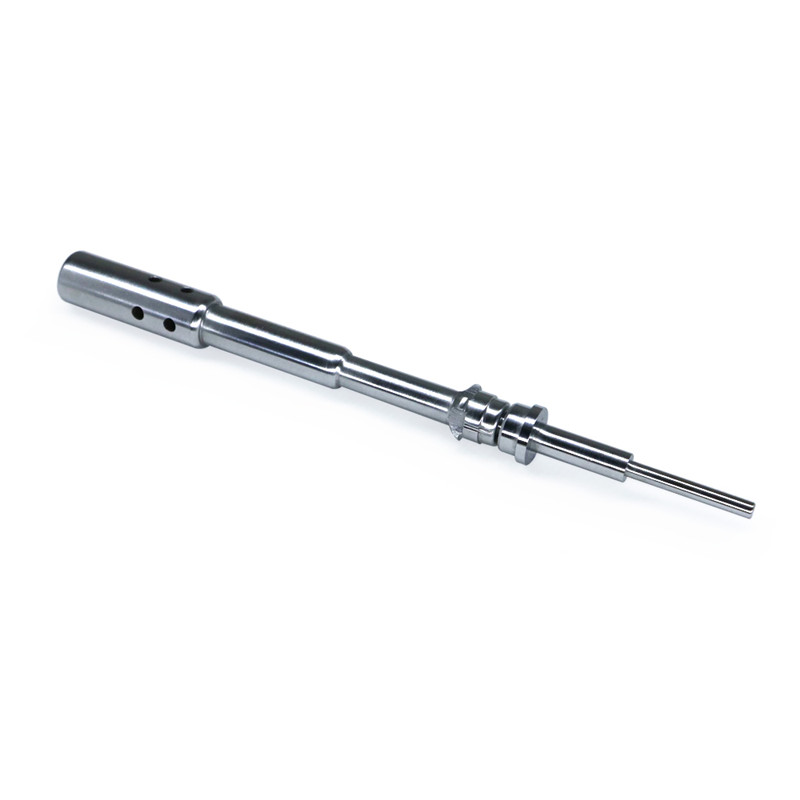

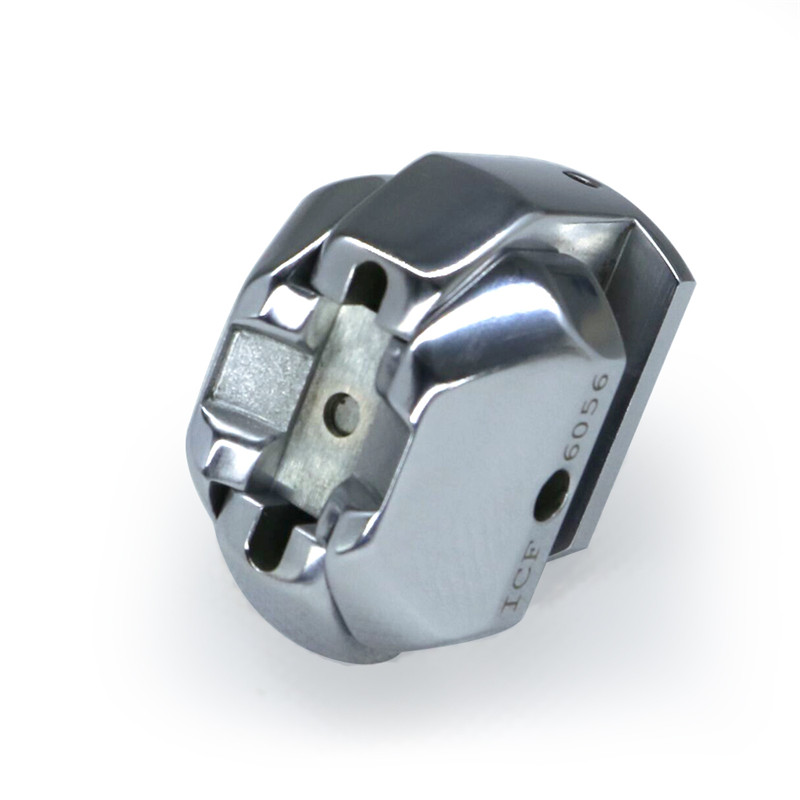

    处理图 模杆处理图 模头处理图

    Production video

    生产视频
