Ordinary four-slot winding die Φ60*60
Application field：
It is suitable for power coils of cooling fans, DC motors, small motors, automobile motors, etc., special for four-pole and multi-pole winding.
- Product Details
Product parameter
| Name | Die specifications | Wire diameter range | Silicon steel sheet outer diameter range | Silicon steel sheet thickness range |
| Ordinary four-slot winding die | Φ60*60 | 0.10 to 0.65 | φ18.0 to φ46.0 | 1.4mm to 24.0 |

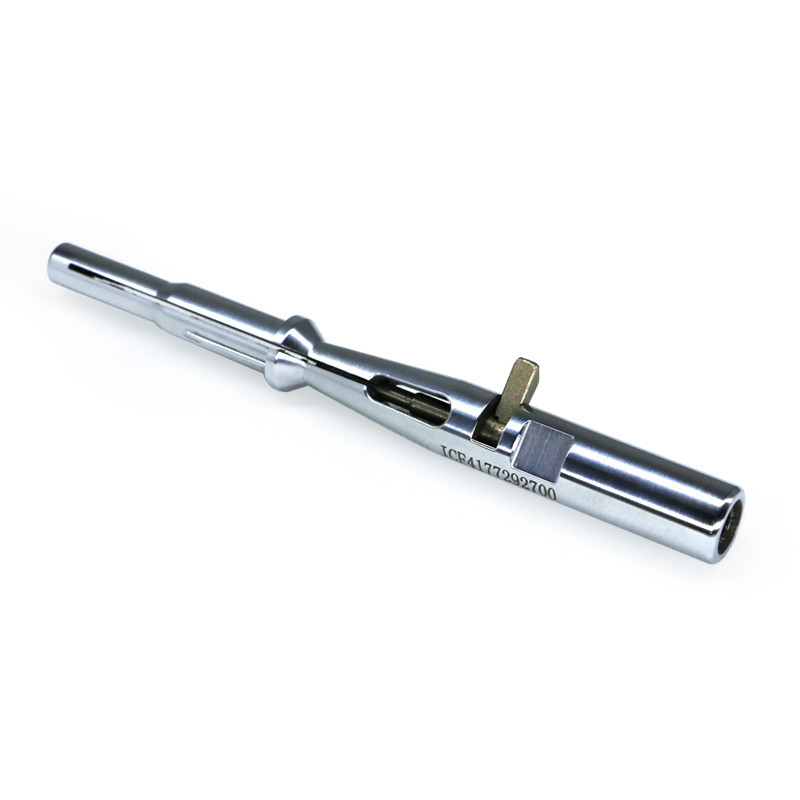

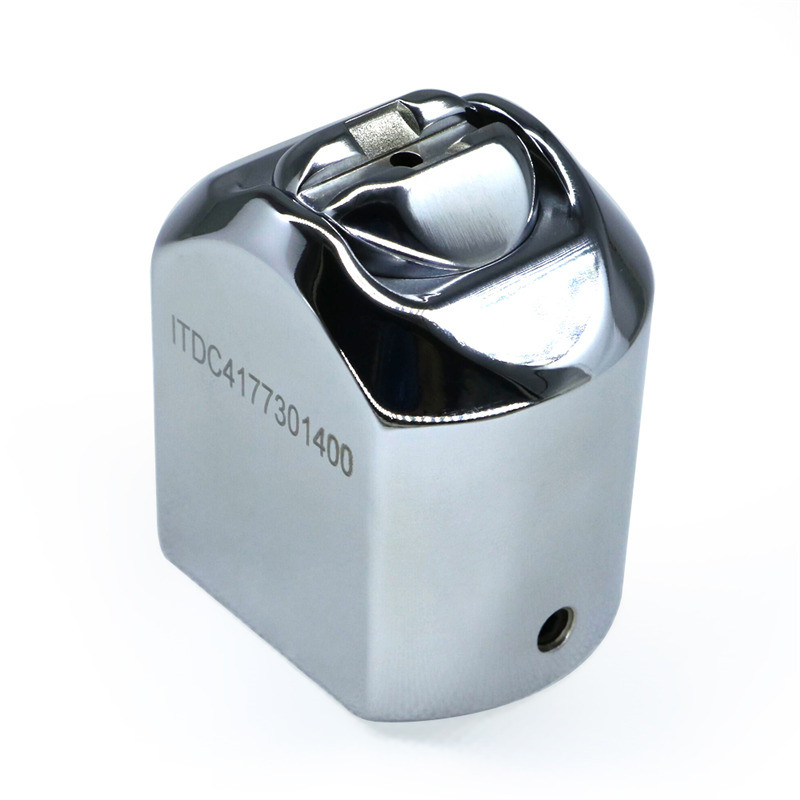

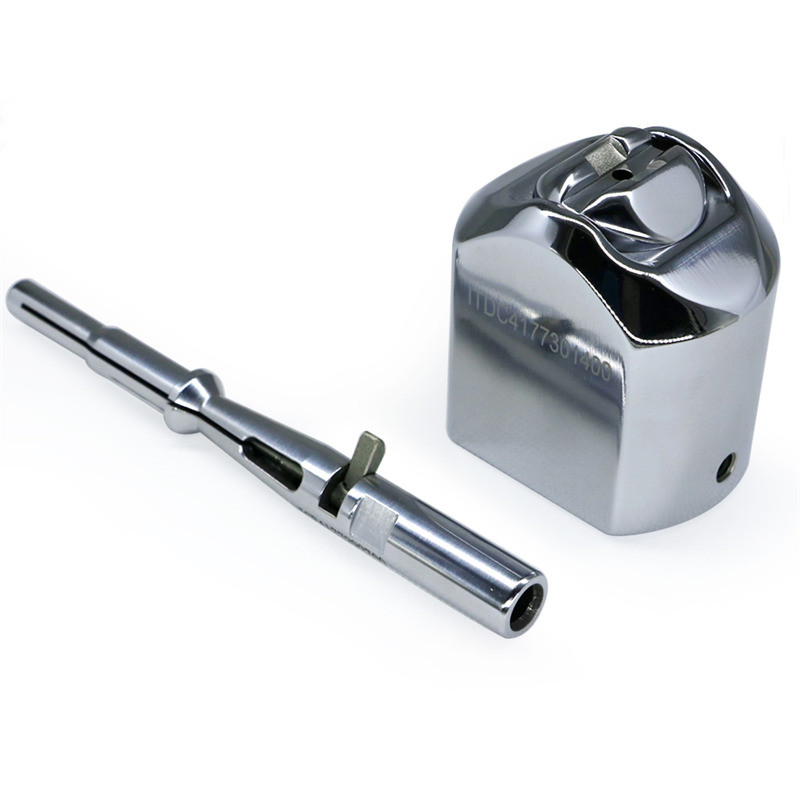

Mold picture
