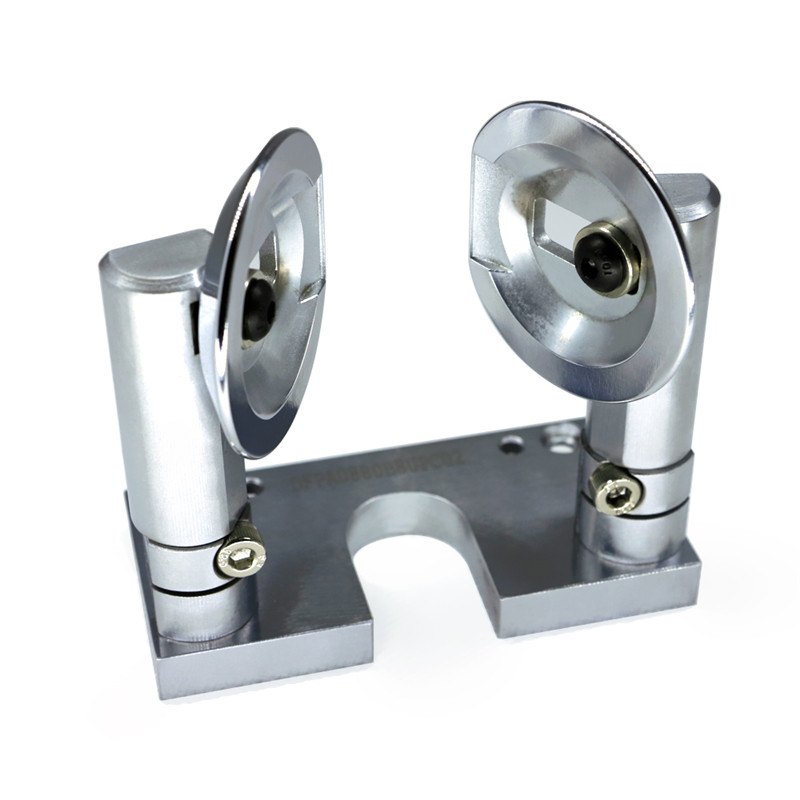

  • 护耳处理图

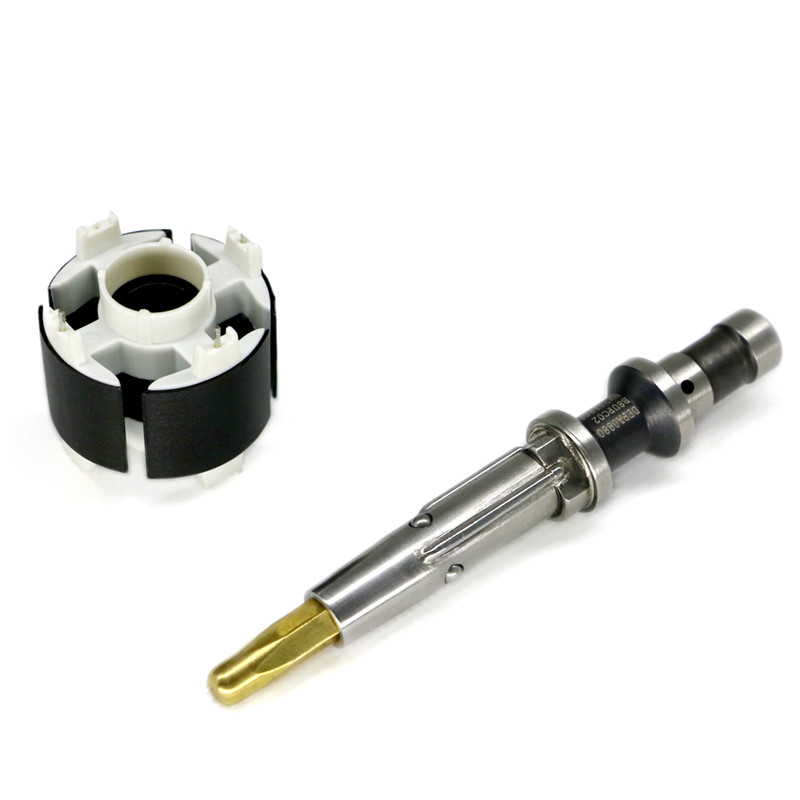

  • 模杆+定子处理图

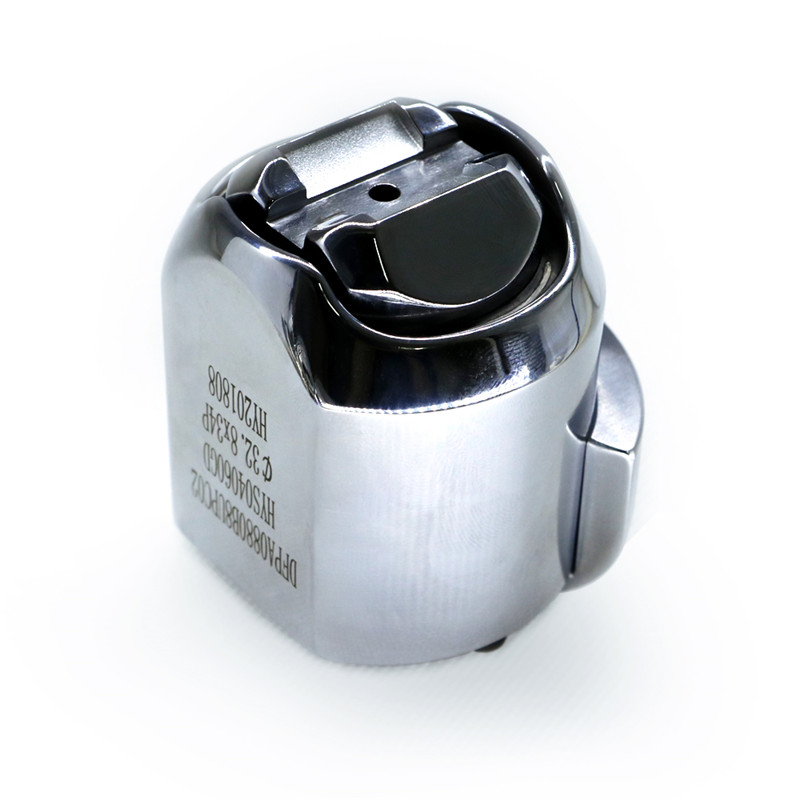

  • 模头处理图

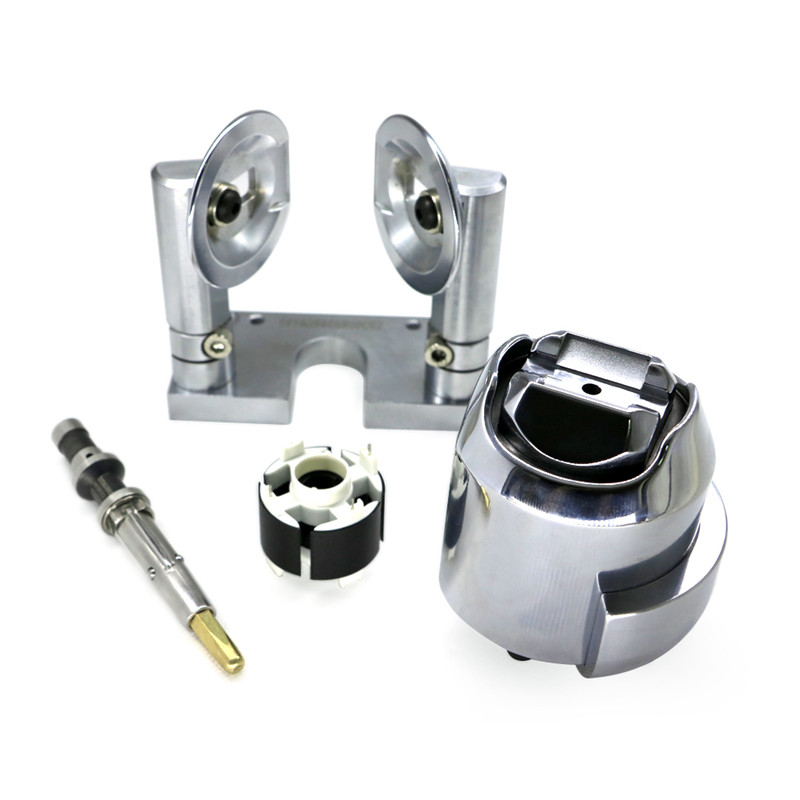

  • 模头+模杆+护耳+定子处理图

Multi-slot winding die Φ60*60

Application field:

It is suitable for power coils of cooling fans, DC motors, small motors, automobile motors, etc., special for four-pole and multi-pole winding.
  • Product Details

    Product parameter

    工作图片
    NameDie specificationsWire diameter rangeSilicon steel sheet outer diameter rangeSilicon steel sheet thickness range
    Multi-slot winding dieΦ60*600.10 to 0.65φ16.0 to φ26.01.4mm to 12.0

    Mold picture

    模具图片
    处理图 护耳处理图 模杆+定子处理图 模头处理图
