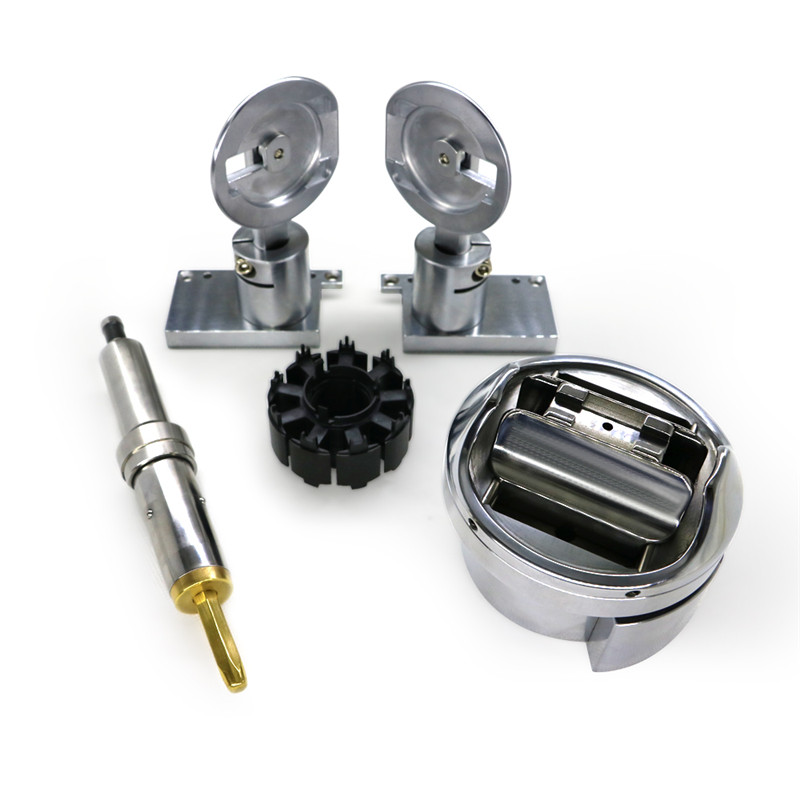

  • 处理图

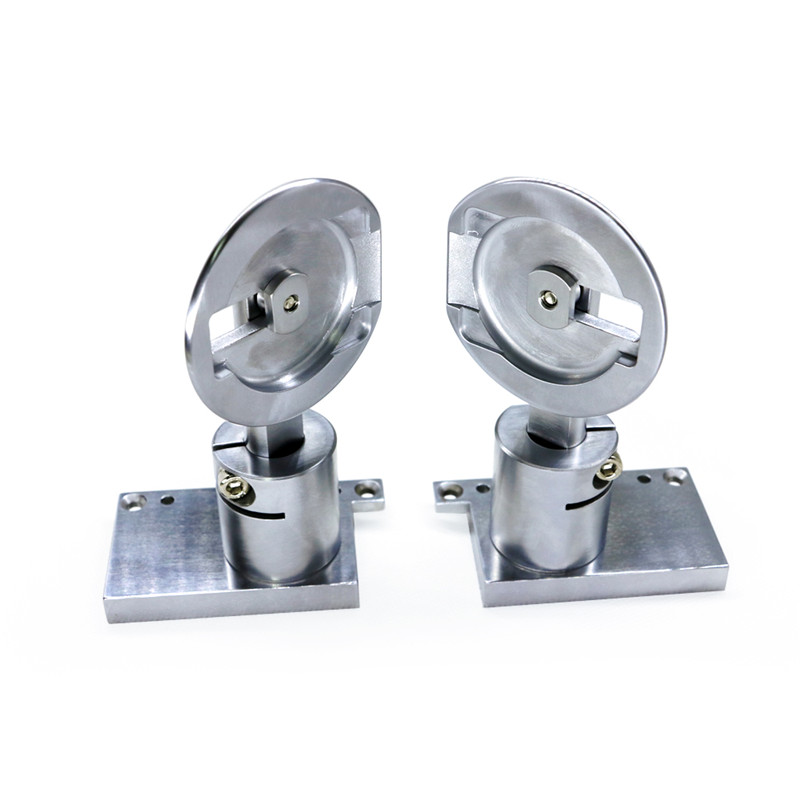

  • 护耳已处理

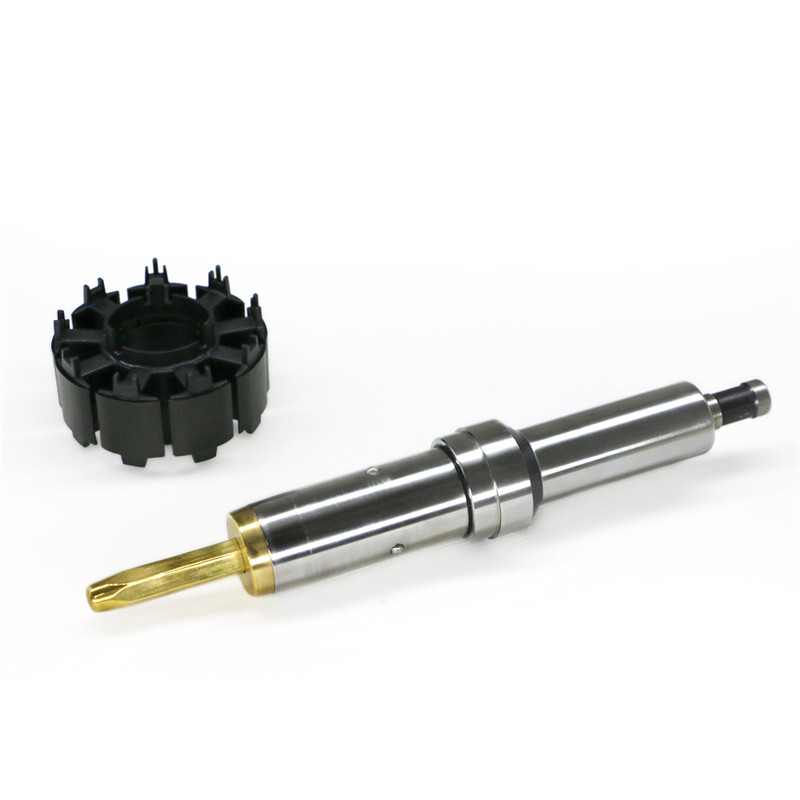

  • 模杆+定子处理图

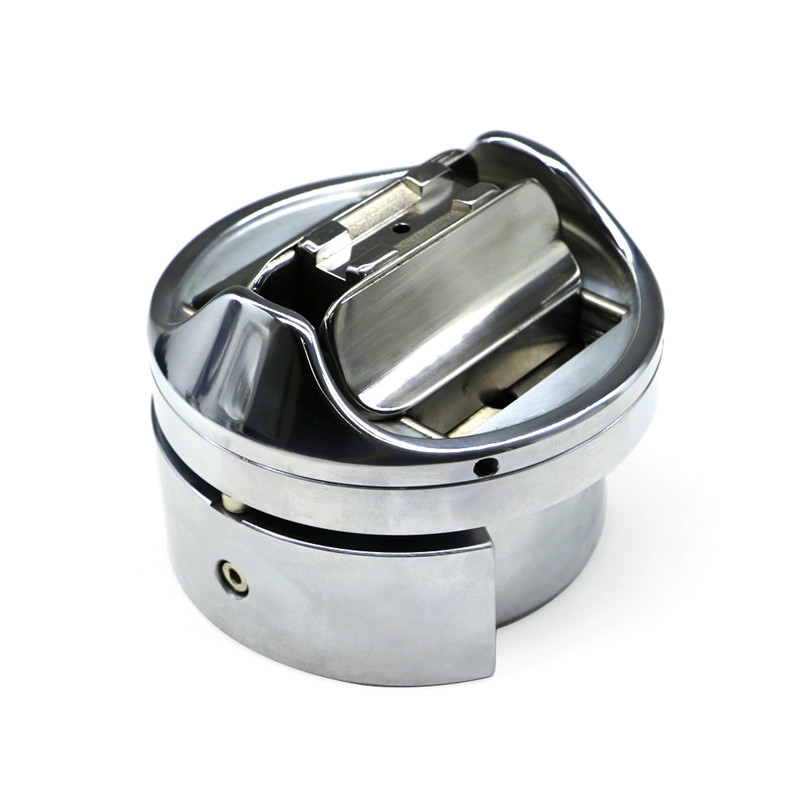

  • 模头处理图

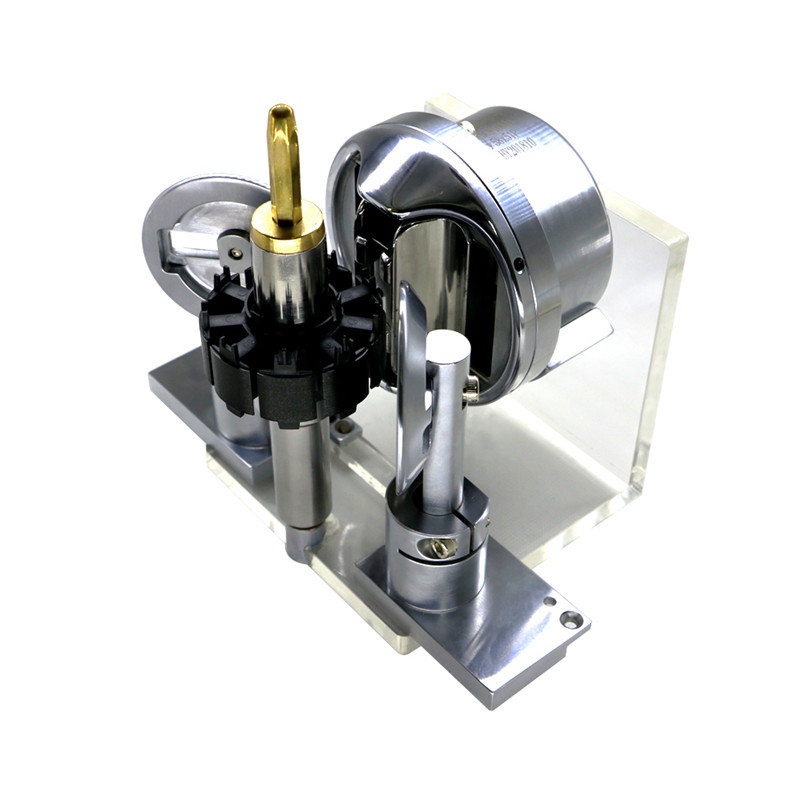

  • 模头+模杆+护耳+定子处理图

Multi-slot winding die Φ100*75

Application field:

适用于散热风扇、直流马达、小型电机、汽车马达等动力线圈,四极、多极绕线专用。
  • Product Details

    Product parameter

    工作图片
    名称模头规格线径范围矽钢片外径范围矽钢片厚度范围
    多槽绕线模头Φ100*750.35至0.8φ38.0至φ74.02.1mm至30.0

    Mold picture

    模具图片
    处理图 护耳已处理 模杆+定子处理图 模头处理图 模头+模杆+护耳+定子处理图
